SUPREME SD95
ENTRANCE DOORS INSULATED SYSTEM
Generic
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Flat
Technical Characteristics
FRAME DEPTH: 95 mm
GLAZING TYPE: Double – Triple
MAXIMUM GLAZING THICKNESS: 24 up to 54 mm
MECHANISM: Multiple points locks
SEALING METHOD: Perimetrical at 3 levels with EPDM qaskets
MINIMUM THRESHOLD HEIGHT: 22 mm
TYPE OF THERMAL INSULATION: Polyamides 34mm, ALUMIL Energy bar, Insulation foam
Performance
WATER TIGHTNESS: CLASS 3A
AIR PERMEABILITY: CLASS 4
WIND LOAD RESISTANCE: C5/B5
BURGLAR RESISTANCE: RC3
Characteristics
UF: από 1,2 έως 2,1 W/m2K
TYPES OF TYPOLOGY: For all entrance door typologies with glass or aluminium panels
SASH WEIGHT: Up to180 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 122 mm
-
Description

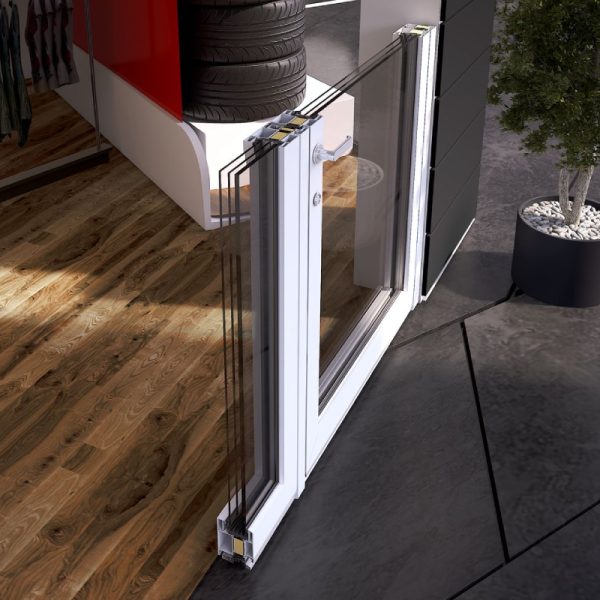

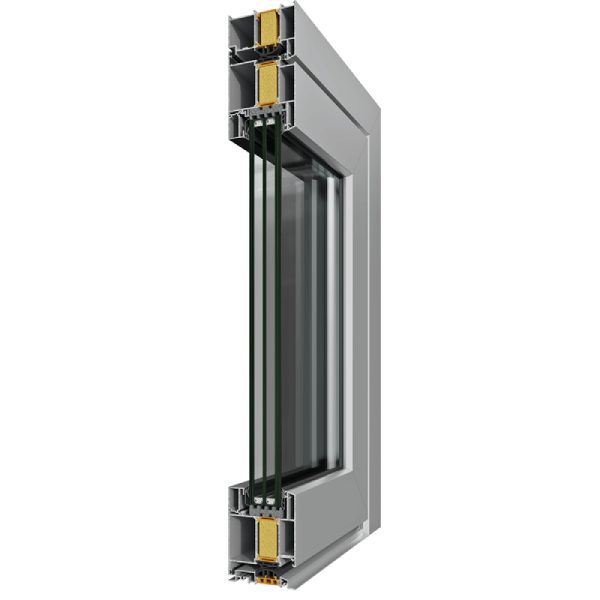

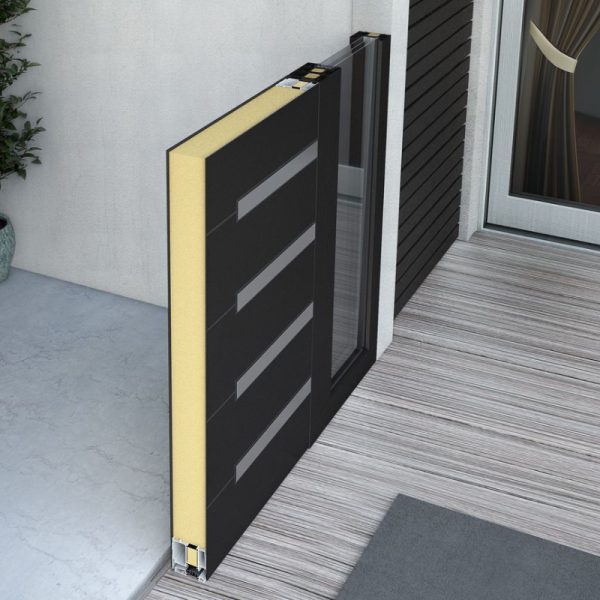

The system SUPREME SD95 belongs to ALUMIL’s series for entrance doors with high quality standards. The system includes a complete range of thermal break profiles with flat design for totally aligned constructions that offer high functionality. Offering many infill options including aluminium or glass panels, the SUPREME SD95 is able to meet the most demanding architectural trends and aesthetics.
Benefits
Maximum energy saving thanks to the exceptional thermal.
Modern design.
High security level.
Ease of access ideal for people with disabilities and children.
Exceptional sound insulation.
Ease of use and high functionality.
Wide variety of typologies.
Exceptional quality with certified performances.
