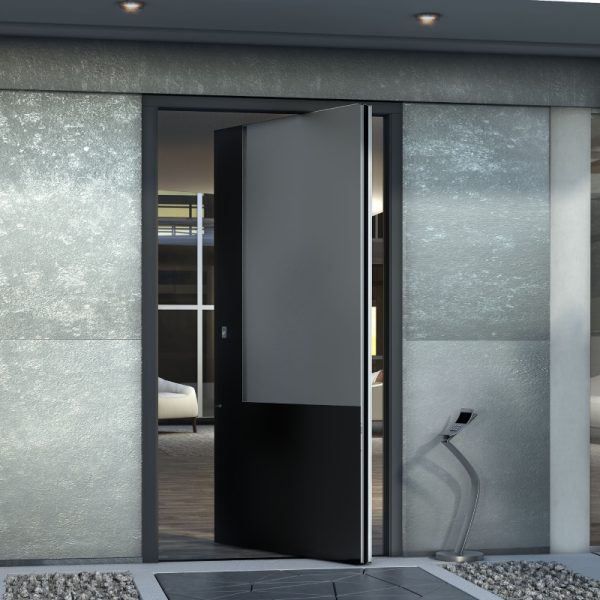

SUPREME SD115
ENTRANCE DOORS INSULATED SYSTEM
Generic
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Flat
SURFACE TREATMENTS: Powder Coating, All powder coating, Polished anodizing, Anodizing colors, Wood sublimation
Technical Characteristics
FRAME DEPTH: 115 mm
MAXIMUM GLAZING THICKNESS: 115 mm
MECHANISM: Multiple points locks
SEALING METHOD: Perimetrical at 3 levels with EPDM qaskets
MINIMUM THRESHOLD HEIGHT: 7 mm
TYPE OF THERMAL INSULATION: Polyamides 34mm, ALUMIL Energy bar, Insulation foam
Performance
BURGLAR RESISTANCE: RC3
Characteristics
UF: from 0,75 W/m2K
TYPES OF TYPOLOGY: Single leaf pivot doors
SASH WEIGHT: Up to 250 Kg
SASH DEPTH: 115 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 70 mm
-
Description
ALUMIL creates new horizons for modern residential and industrial design thanks to the innovative design of the system SUPREME SD115 Pivot that offers extremely large entrance doors for an exceptional aesthetic result with a pure, minimalistic design and coplanar surfaces.
The system SUPREME SD115 Pivot provides an outstanding new feeling of brightness and connection between internal and external environments, rendering the system unique in concept and design.
The innovative design of the system, alongside the state-of-the-art equipment, provide the prerequisites for prestigious entrance doors with high aesthetics, exceptional quality and outstanding performances in terms of security, insulation, and functionality.
Benefits
High security level.
Modern design.
Maximum energy saving thanks to the exceptional thermal.
Ease of access ideal for people with disabilities and children.
Exceptional sound insulation.
Ease of use and high functionality.
