SUPREME S91
HINGED INSULATED SYSTEM
Generic
WINDOW TYPE: Hinged
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Flat
Technical Characteristics
FRAME DEPTH: 91 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 93 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 151 mm
GLAZING TYPE: Double – Triple
MAXIMUM GLAZING THICKNESS: from 37 up to 81 mm
MECHANISM: Euro-groove, Euro-nut
SEALING METHOD: Perimetrical at 3 levels with EPDM & foam EPDM gaskets
MINIMUM THRESHOLD HEIGHT: 13 mm

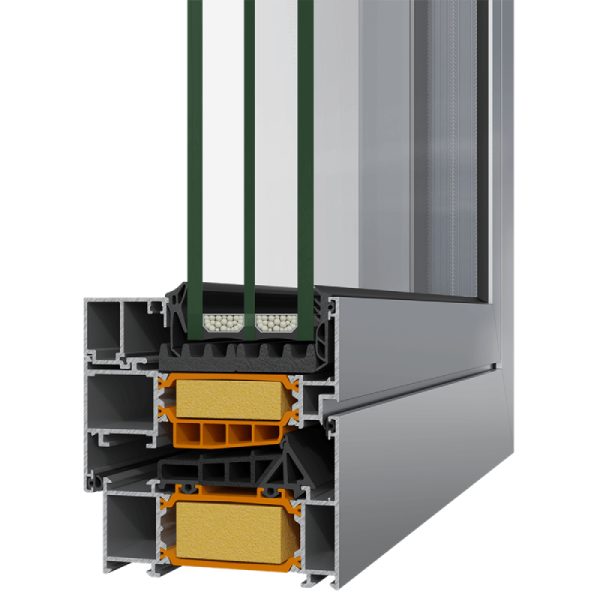

TYPE OF THERMAL INSULATION: Polyamides 54 mm width, ALUMIL Energy bar, Insulation foam
Performance
WATER TIGHTNESS: CLASS E1650
AIR PERMEABILITY: CLASS 4
WIND LOAD RESISTANCE: C5/B5
SOUND REDUCTION: 47 dB
BURGLAR RESISTANCE: RC2/RC3
Characteristics
UF: from 0,67 to 1,1 W/m²K
TYPES OF TYPOLOGY: Όλες οι τυπολογίες ανοιγοανακλινόμενων κουφωμάτων, περιστρεφόμενα
SASH WEIGHT: up to 180 Kg
-
Description
The system SUPREME S91 was specially designed in order to meet the high requirements of passive houses. It is ideal for heavy duty and energy efficient constructions offering a high security level. The system’s development was driven by the need for best in class performances in terms of thermal insulation, water tightness, as well as sound reduction. The system is the perfect solution for the most demanding markets.
Advantages
Modern design.
Maximum energy saving thanks to the Passive House energy efficiency.
High security level.
Exceptional sound insulation.
Increased static loads and functionality in case of severe weather conditions.
Exceptional quality with certified performances.
Ease of use and high functionality.
