SUPREME S500 PHOS
MINIMAL SLIDING INSULATED SYSTEM
Generic
WINDOW TYPE: Sliding
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Flat
Technical Characteristics
SASH DEPTH: 50 mm
MAXIMUM GLAZING THICKNESS: 36mm
MECHANISM: ALUMIL
SEALING METHOD: Perimetrical with tri-fin brushes
MINIMUM THRESHOLD HEIGHT: 0 mm
TYPE OF THERMAL INSULATION: Polyamides, ABS
Performance
UW: 1,2 W/m2K
WATER TIGHTNESS: CLASS 7A
AIR PERMEABILITY: CLASS 3
WIND LOAD RESISTANCE: C3
Characteristics
SASH WEIGHT: up to 1000 Kg
TYPES OF TYPOLOGY: Horizontal sliding sashes, Meeting stile, Combinations with fixed lights, Combinations with fly-screen
-
Description
The thermally insulated sliding system SUPREME S500 PHOS sets new standards for minimalism with its clear, symmetrical lines, impressive functionality and implementation of advanced technology.
The SUPREME S500 SlideAir version revolutionises the operation of sliding systems. Thanks to the innovative and patented gravity-defying magnetic levitation technology, the force required to slide the sash is minimised, the sash is as light as a feather, and the system’s operation is easier, smoother and quieter than ever before!
Advantages
Patented magnetic technology for sliding aluminium systems, offering limitless dimensions and typologies.
Guaranteed ease in sliding sashes weighing up to 1000 Kg, without the need for electricity or additional space to install magnetic technology.
Certified durability, delivering unmatched resilience in highly corrosive environments.

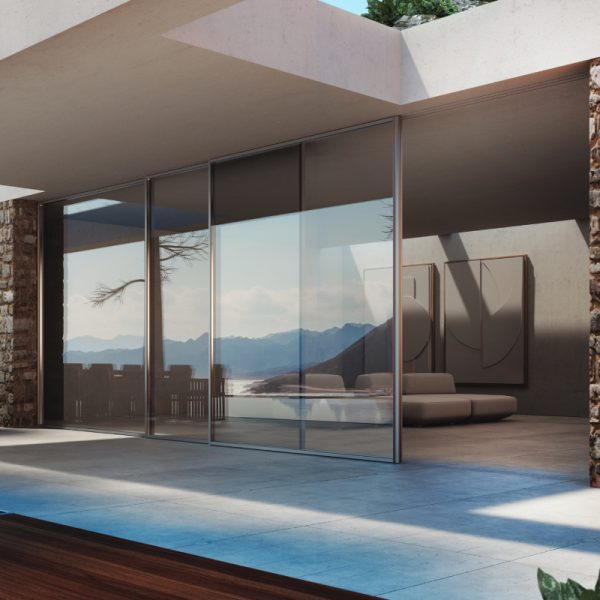

Minimal design with concealed profiles and clear, symmetrical lines for maximum natural light.

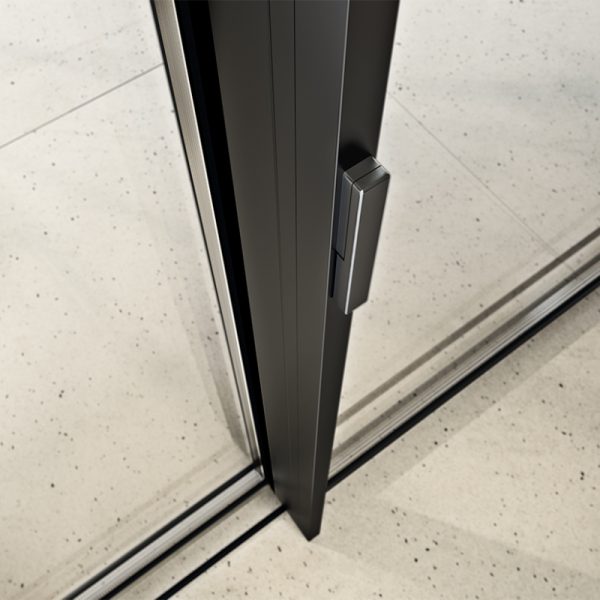

Narrow interlocking profile of only 25 mm face width for unobstructed views.
Easy and safe access with the Eclipse version, with a fully concealed bottom track covered with the floor finish, providing a flat surface.
Ultimate minimal design in the Total Eclipse version, with all tracks covered by the ceiling, floor, and walls, resulting in a seamless appearance.
