SMARTIA SD77
ENTRANCE DOORS INSULATED SYSTEM
Generic
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Flat
Technical Characteristics
FRAME DEPTH: 77 mm
GLAZING TYPE: Double – Triple
MAXIMUM GLAZING THICKNESS: 23 up to 59 mm
MECHANISM: Multiple points locks
SEALING METHOD: Perimetrical at 3 levels with EPDM qaskets

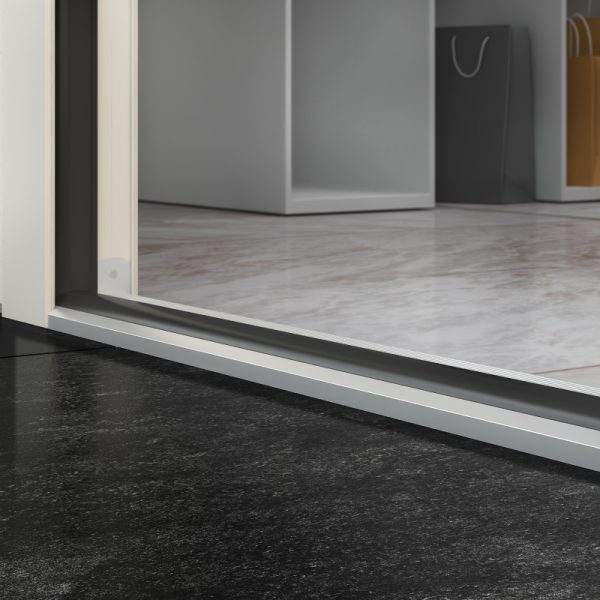

MINIMUM THRESHOLD HEIGHT: 22 mm

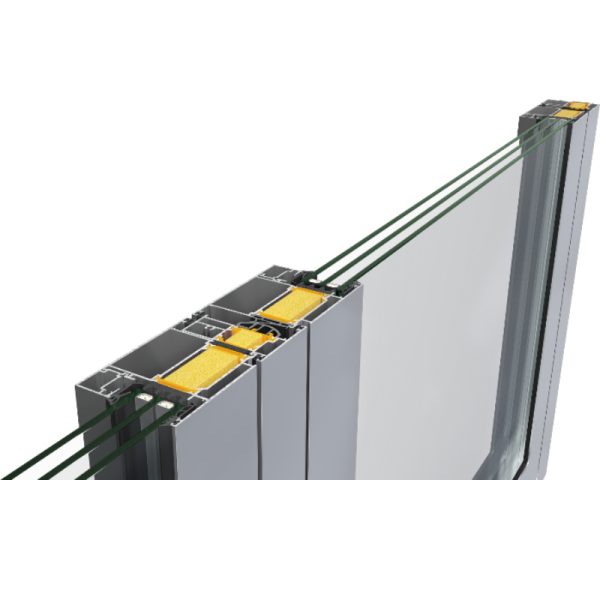

TYPE OF THERMAL INSULATION: Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam
Performance
UW: from 0,7 W/m2K
WATER TIGHTNESS: CLASS 7A
AIR PERMEABILITY: CLASS 4
WIND LOAD RESISTANCE: C4/B4
BURGLAR RESISTANCE: RC2
Characteristics
UF: from 0,9 up to 1,9 W/m2K

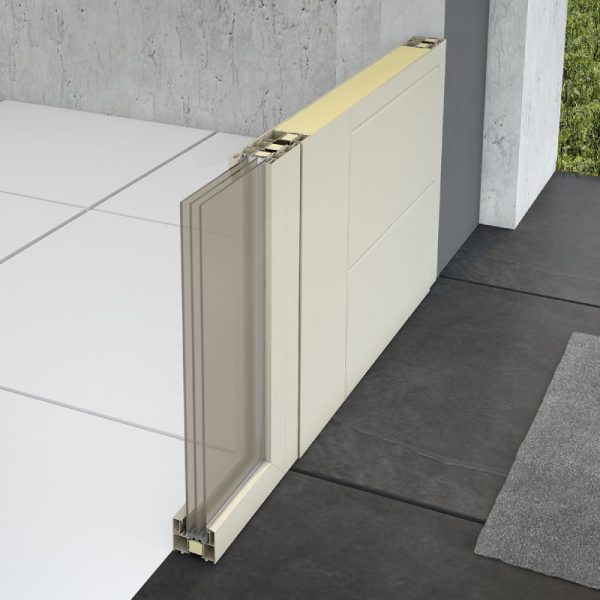

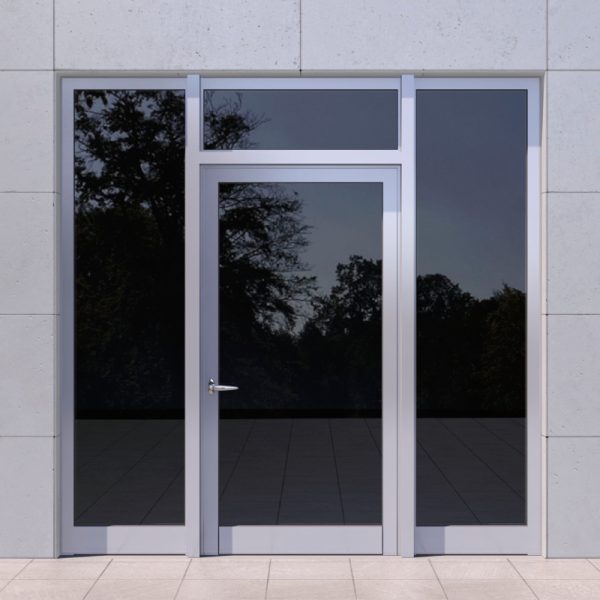

TYPES OF TYPOLOGY: For all entrance door typologies with glass or aluminium panels
SASH WEIGHT: Up to180 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 117 mm
-
Description

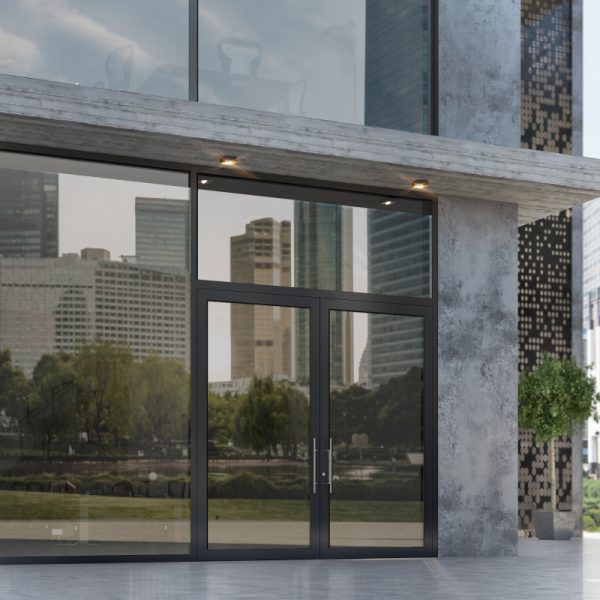

SMARTIA SD77 is ALUMIL’s system for quality entrance doors requiring modern design, high performance and emphasis on safety. The system provides the ability to create multiple constructions combined either with aluminium panels or with glazing infills. Thanks to its modern, flat and coplanar design, it offers elegant uniformity that enhances the innovative design and aesthetics of the series.
Benefits
High energy savings thanks to high energy efficiency.
Modern design.
High security level.
Ease of access ideal for people with disabilities and children.
Exceptional sound insulation.
Ease of use and high functionality.
Wide variety of typologies.
Exceptional quality with certified performances.
