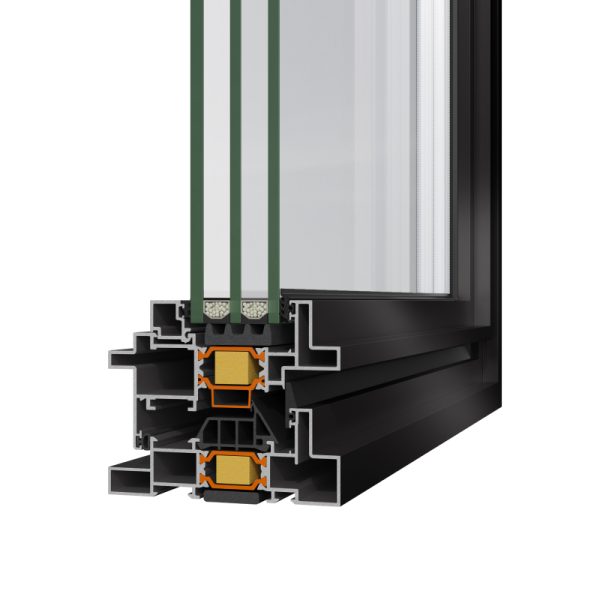

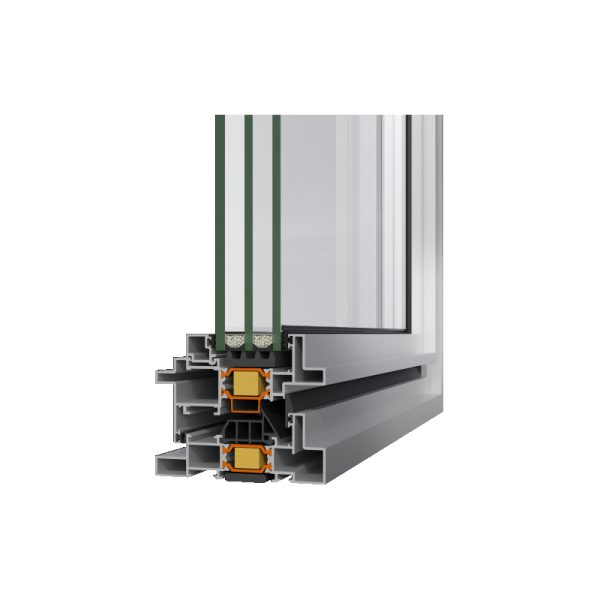

SMARTIA S67 URBAN
HINGED INSULATED SYSTEM
Generic
WINDOW TYPE: Hinged
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Flat
Technical Characteristics
FRAME DEPTH: 105 mm
SASH DEPTH: 65 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 85 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 135 mm
GLAZING TYPE: Double – Triple
MAXIMUM GLAZING THICKNESS: from 10 mm up to 44 mm
MECHANISM: Euro-groove
SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT: 21 mm
TYPE OF THERMAL INSULATION: 30mm fiberglass Polyamides, PE Insulation Foam, ENERGY BAR
Performance
WATER TIGHTNESS: E750
AIR PERMEABILITY: CLASS 4
WIND LOAD RESISTANCE: C3/B3
Characteristics
UF: from 1,9 to 2,8 W/m²K
TYPES OF TYPOLOGY: For all tilt & turn typologies
SASH WEIGHT: up to 180 Kg
-
Description
SMARTIA S67 URBAN is a new hinged insulated system of unique aesthetics that ideally combines the industrial look along with top performances.
Advantages
Excellent value for money.
High energy saving thanks to its high level of thermal performance.

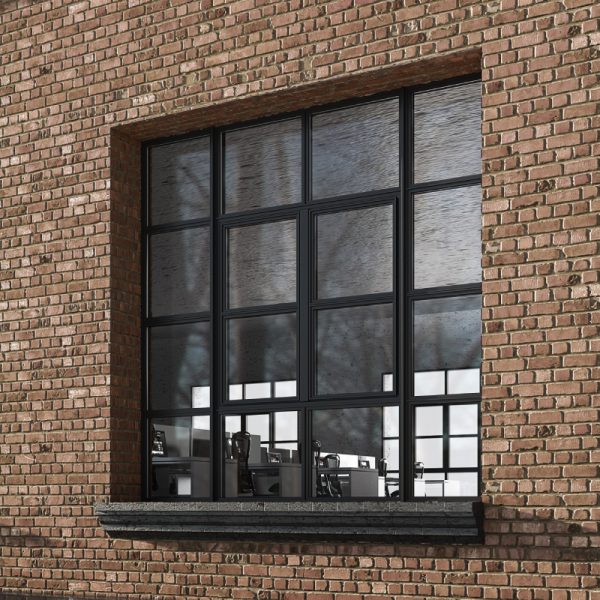

System that fully responds to the constantly growing architectural trend of industrial design.
Ideal for renovations of old steel windows, combining its special appearance along with all the comparative advantages of an aluminium thermal insulation system.
Variety of architectural solution and typologies.
Easy access in accordance with legislation for people with disabilities and children.
High certified performance, in terms of air permeability and water tightness.
Easy to use and high functional system.
