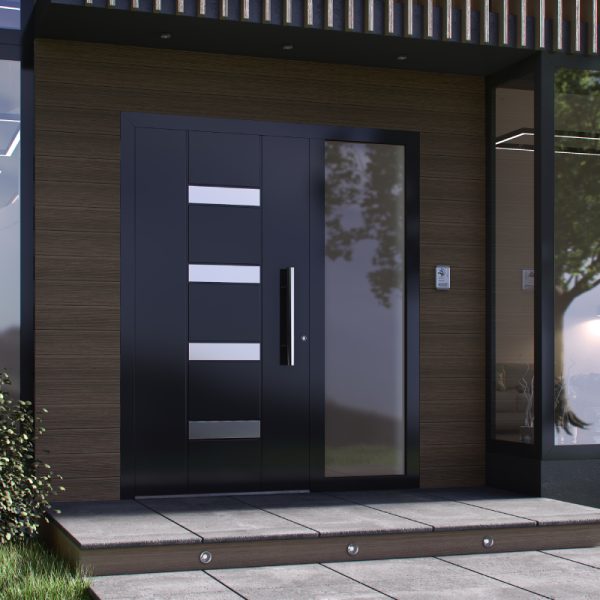

SMARTIA MD9660
ENTRANCE DOORS INSULATED SYSTEM
Generic
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Flat
Technical Characteristics
FRAME DEPTH: 56 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 61 mm
GLAZING TYPE: Double – Triple
MAXIMUM GLAZING THICKNESS: from 20 up to 51,5 mm
MECHANISM: Euro-groove, Euro-nut
SEALING METHOD: Perimetrical at 3 levels with EPDM qaskets
MINIMUM THRESHOLD HEIGHT: 15 mm
TYPE OF THERMAL INSULATION: Polyamides 24 mm width, ALUMIL Insulation foam
Performance
Watertightness: Class 7A
AIR PERMEABILITY: CLASS 4
WIND LOAD RESISTANCE: C5/B5
SOUND REDUCTION: 36 dB
BURGLAR RESISTANCE: R2
Characteristics
UF: from 2,2 W/m2K
TYPES OF TYPOLOGY: All the typologies of pedestrian doors with or without fx lights
SASH WEIGHT: Up to180 Kg
SASH DEPTH: 65,5 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 112,3 mm
-
Description
Smartia M9660 is a value for money entrance door system with thermal insulation which guarantees satisfying performances without requiring high investment costs.
Benefits
Maximum energy saving thanks to the exceptional thermal.
Very good value for money.
High energy savings due to the high energy efficiency of the system.
Increased level of security.
Increased level of security.
High level of sound insulation.
Ease of use and high functionality.
High quality with certified performances.
Increased static loads and functionality in case of severe weather conditions.
Ease of access according to specifications for people with special needs.
