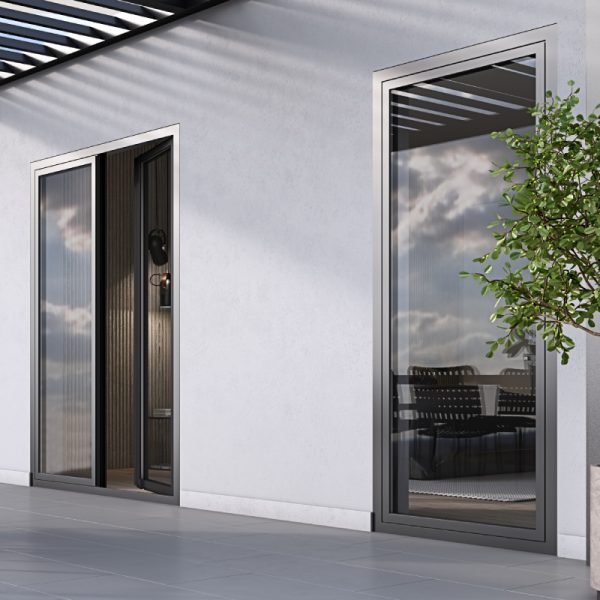

SMARTIA M9660
HINGED INSULATED SYSTEM
Generic
WINDOW TYPE: Hinged
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Classic, Curved, Flat
Technical Characteristics
FRAME DEPTH: 56 mm
SASH DEPTH: 63,5 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 82 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 61 mm
GLAZING TYPE: Double – Triple
MAXIMUM GLAZING THICKNESS: from 20 up to 49 mm
MECHANISM: Euro-groove, Euro-nut
SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT: 15 mm
TYPE OF THERMAL INSULATION: Polyamides 24 mm, PE insulation Foam
Performance
WATER TIGHTNESS: CLASS Ε1650
AIR PERMEABILITY: CLASS 4
SOUND REDUCTION: 45 dB
BURGLAR RESISTANCE: RC2
Characteristics
UF: from 1.8 up to 2.5 W/m²K
TYPES OF TYPOLOGY: For all tilt & turn typologies
SASH WEIGHT: up to 180 Kg
-
Description
SMARTIA M9660 is an insulated Tilt & Turn system for areas with warmer climate, ensuring high quality constructions and application of various typologies with considerable thermal performance. It is ideal for renovations, combining safety and functionality, without requiring high investment costs.
Advantages
Very good value for money.
High energy savings due to the high energy efficiency of the system.
Increased level of security.
High level of sound insulation.
Ease of use and high functionality.
Modern design for windows either with flat or curved line.
High quality with certified performances.
Increased static loads and functionality in case of severe weather conditions.
Entrance doors with ease of access according to specifications for people with special needs.
Special solutions for Hotels.
Variety of alternative solutions.
