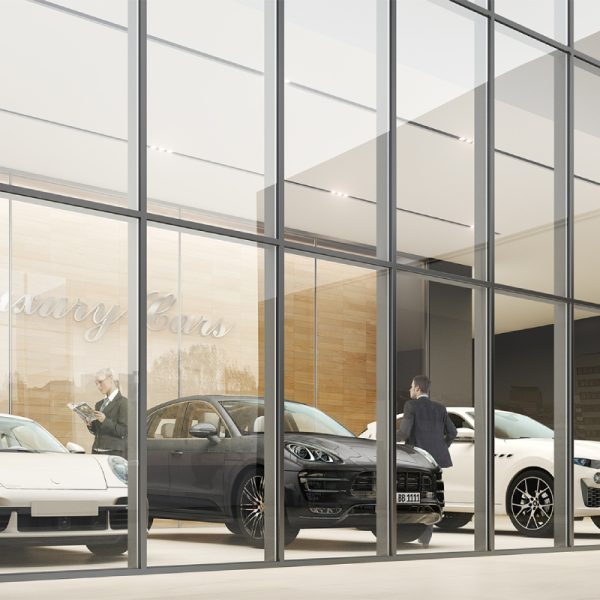

SMARTIA M35
CURTAIN WALL SYSTEM FOR MAXIMUM TRANSPARENCY
Generic
AESTHETICS: Standard
Technical Characteristics
EXTERIOR VISIBLE WIDTH: 35 mm
Performance
WIND LOAD RESISTANCE : Design Load ±1,6 KN/m2, Safety Load ±2,4 KN/m2
WATER TIGHTNESS: RE 1050
AIR PERMEABILITY: AE
Characteristics
TRANSOMS MAX INERTIA: 451 cm4
MULLION MAX INERTIA: 540 cm4
UF από 1,2 έως 2,2 W/m2K
TYPES OF TYPOLOGY: Fixed, Projected, Parallel Projected, Tilt and turn
TRANSOM DEPTH: 50 – 200 mm
TYPE OF HOLDING GLAZING: Pressure plate
MULLION DEPTH: 50 – 200 mm
MAXIMUM GLAZING THICKNESS: from 4mm up to 54mm
-
Description
SMARTIA M35 is a “value for money” curtain wall system which ideally combines aestetics and high performances.
Its minimal design offering reduced sightline, compared to other typicall Curtain Wall Systems, at 35mm, renders SMARTIA M35 ideal for Transparent Architecture.
Advantages
Enhancement of natural light.
Ideal for constructions that required minimal look such as shopfronts.
Increased comfort level.
Certified performances in terms of air, water tightness and wind pressure.
Excellent energy efficiency.
Increased static robustness, even in extreme natural phenomena.
Minimum after sales service.
Cost efficient product compare to competition.
