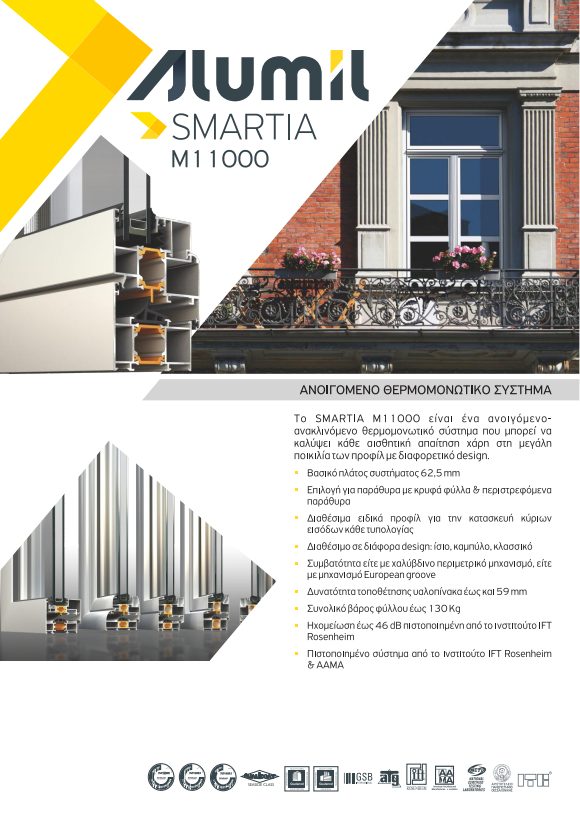

SMARTIA M11000
ENTRANCE DOORS INSULATED SYSTEM
Generic
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Classic, Curved, Flat
Technical Characteristics
FRAME DEPTH: 62,5 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 61,39 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE) : 61 mm
GLAZING TYPE: Double
MAXIMUM GLAZING THICKNESS: 20 up to 59 mm
MECHANISM: Multiple points locks
SEALING METHOD: Perimetrical at 3 levels with EPDM qaskets
MINIMUM THRESHOLD HEIGHT: 17 mm
TYPE OF THERMAL INSULATION: Polyamides 20, 24 mm width
Performance
AIR PERMEABILITY: CLASS 1
WIND LOAD RESISTANCE: C1
Characteristics
UF: from 2,3 up to 2,7 W/m2K
TYPES OF TYPOLOGY: All the typologies of pedestrian doors with or without fx lights
SASH WEIGHT: Up to180 Kg
SASH DEPTH: 62,5 mm
MIN. VISIBLE ALUMINIUM FACE HEIGHT: 70 mm
-
Description
SMARTIA M11000 consists one of the most completed insulated aluminium system which can serve a wide range of different needs with satisfied performances.
Benefits
Very good value for money.
High energy savings due to high energy efficiency of the system.
Increased level of security.
High level of sound insulation.
Ease of use and high functionality.
High quality with certified performances.
Increased static loads and functionality in case of severe weather conditions.
Ease of access according to specifications for people with special needs.
