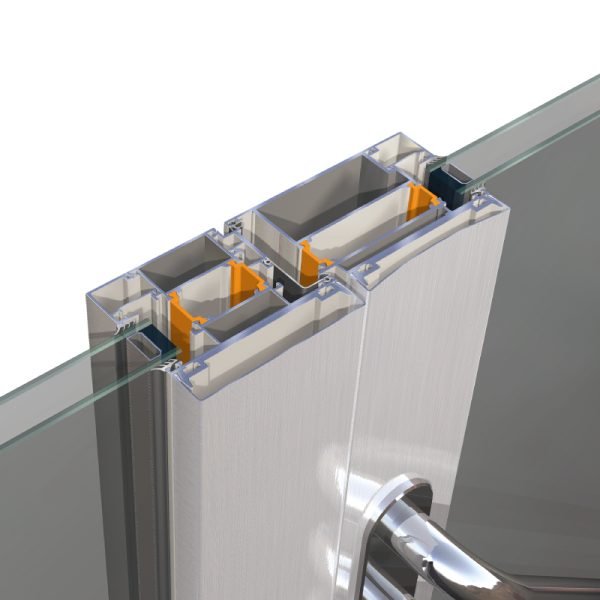

SMARTIA M11000
THERMAL INSULATED WINDOW SYSTEM
Generic
WINDOW TYPE: Hinged
THERMAL INSULATION: Yes
EXTERIOR SHAPE: Classic, Curved, Flat
Technical Characteristics
FRAME DEPTH: 62,5 mm
SASHDEPTH: 70 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT: 70 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE): 61 mm
GLAZING TYPE: Single – Double – Triple
MAXIMUM GLAZING THICKNESS: from 20 up to 59 mm
MECHANISM: Euro-groove, Euro-nut
SEALING METHOD: Perimetrical at 3 levels with EPDM gaskets
TYPE OF THERMAL INSULATION: Polyamides 24, 20 mm
Performance
WATER TIGHTNESS: CLASS Ε900
AIR PERMEABILITY: CLASS 4
SOUND REDUCTION: 47 dB
BURLGAR RESISTANCE: RC2/RC3
Characteristics
UF: from 2,3 up to 2,9 W/m2K
TYPES OF TYPOLOGY: For all tilt & turn typologies
SASH WEIGHT: up to 180 Kg
-
Description
Hinged insulated system SMARTIA M11000
SMARTIA M11000 is a Tilt & Turn insulated hinged system that can meet the most demanding needs thanks to a large variety of solutions and designs.
Advantages
High value for money.
High energy savings due to the high energy efficiency of the system.
Increased level of security.
High level of sound insulation.
Enhanced natural light thanks to the possibility to use hidden sash.
Ease of use and high functionality.
Modern design for windows either with flat or curved line.
High quality with certified performances.
Increased static loads and functionality in case of severe weather conditions.
