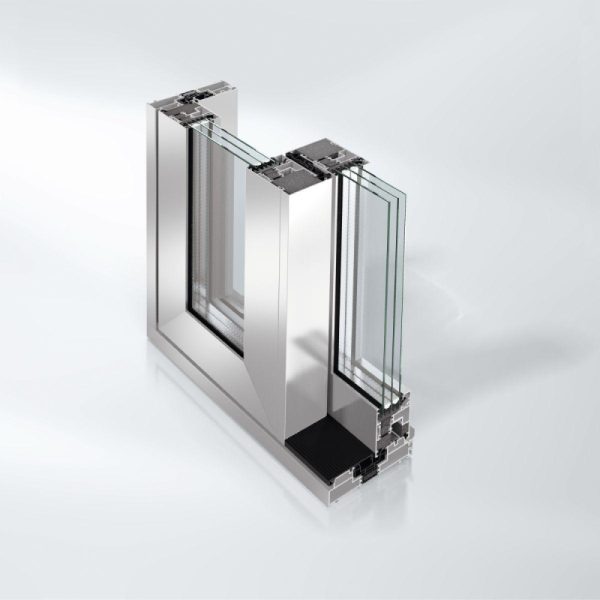

ASS 70.HI
SLIDING AND LIFT-AND-SLIDE SYSTEM
Technical Characteristics
Min. vent height: 3000 mm
Max. vent height: 3000 mm
Vent frame face width: 86 mm
Min. face width of interlocking section: 108 mm
Min. system basic depth: 160 mm
Uw value of window (≥): 1,3 W/(m²·K)
Max. sound reduction index Rwp: 44 dB(A)
Barrier-free (≤) 20 mm: No
Zero-level threshold: Yes
Watertightness: RE 1050
Burglar resistance: Up to RC 2
Operating type: Manual
-
Description
Highly thermally insulated sliding and lift-and-slide system for every application
Based on single, double and triple-track outer frames, the Schüco ASS 70.HI (High Insulated) sliding and lift-and-slide system permits large opening widths with outstanding user comfort – perfect for use as a elegant system solution in commercial projects and luxury residential properties with high thermal insulation requirements.
Can be equipped with Schüco SmartStop and Schüco SmartClose security and comfort technology; the sliding and lift-and-slide systems ensure that even large vent units can be operated easily and securely.
A large colour spectrum offers practically endless individual design options – even as far as selecting different colours for the inside and outside faces.
Benefits
High quality and reliable hinge components.
Reliable production processes.
Wide range of variations thanks to the high variability of the system.
Sliding and lifting variants available.
