ASS 39 PD.NI
PANORAMA DESIGN SLIDING SYSTEM
Technical information
Min. vent height: 2000 mm
Max. vent height: 3500 mm
Min. vent width: 1000 mm
Max. vent width: 3000 mm
Vent frame face width: 0 mm
Min. face width of interlocking section: 37 mm
Min. system basic depth: 107 mm
Uw value of window (≥): 1,9 W/(m²·K)
Watertightness: Class 7A
Burglar resistance: Up to RC 1
Operating type: Manual
-
Description
Non-insulated sliding system with Panorama Design – can be used flexibly in warm climate zones and for interiors

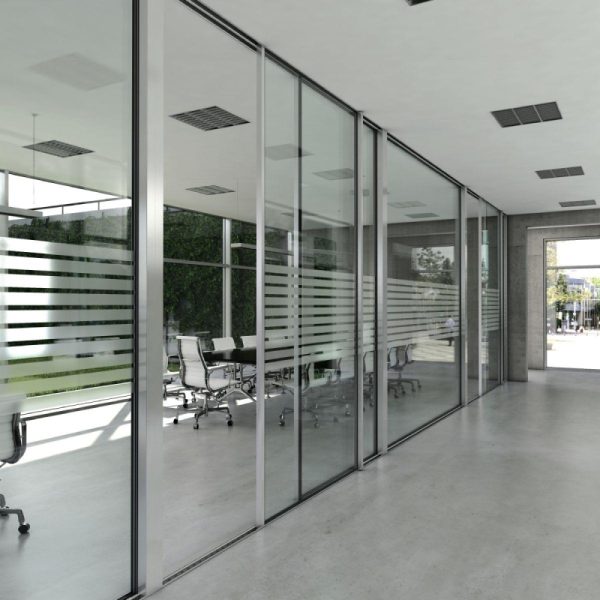

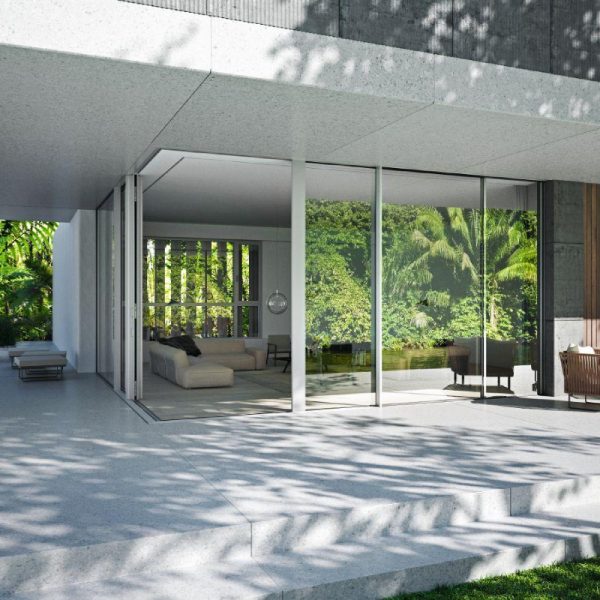

Highly transparent solutions for areas without thermal insulation requirements. With floor-to-ceiling glazing, the Schüco ASS 39 PD.NI (Panorama Design Non-Insulated) sliding system ensures visually flowing transitions in the interior and to the outside.

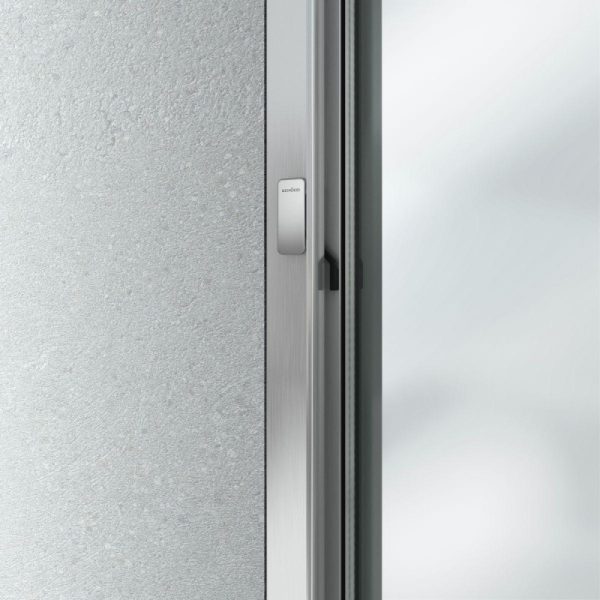

The extraordinary sliding system with the option of concealed, handle-free operation in the interlock section or elegant continuous pull grip captivates with its clear, homogeneous appearance.

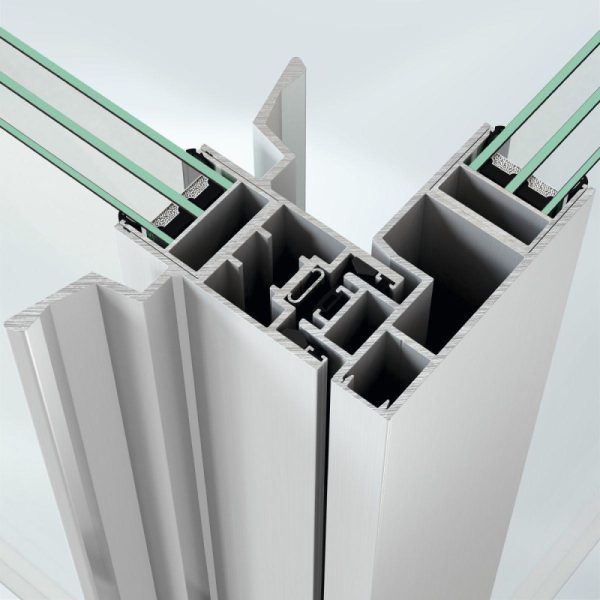

The opening 90° corners are an attractive additional opening type which expands the architectural possibilities.
A new locking point, the optional locking feature for the system from the inside and outside, as well as an integrated flyscreen, ensure a high level of security and comfort.
Fabrication without bonding and the reduced number of individual components ensure easier, faster and therefore more reliable fabrication of the system.
Benefits

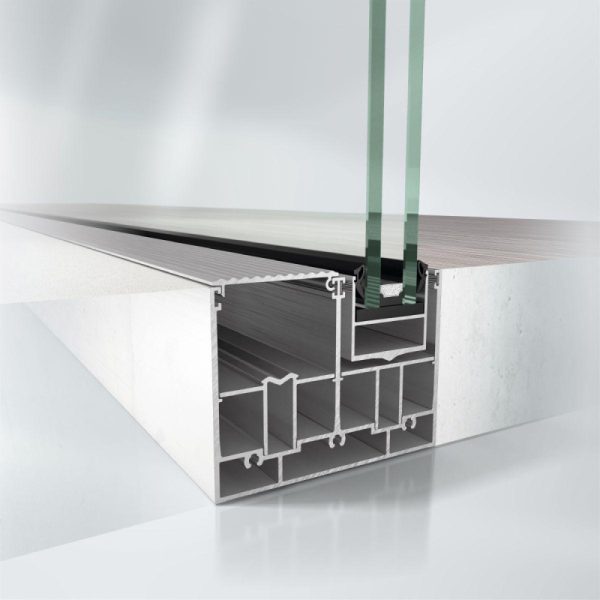

Simple and fast cleaning and maintenance of the rollers without removing the vent.
Easy to fabricate individual components.
Reduced number of individual components ensures easier and thus more reliable fabrication of the system.
Easier, faster fabrication because no bonding is necessary.
Butt joint or mitre joint fabrication.
