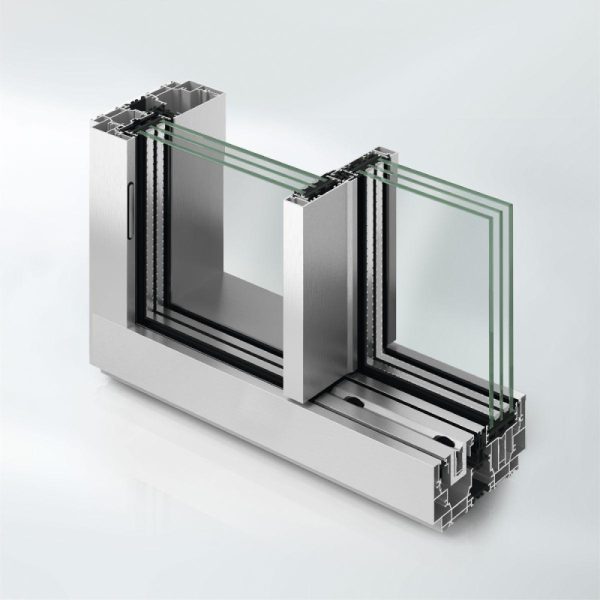

AS PD 75.HI
PANORAMA DESIGN SLIDING SYSTEM
Characteristics
Min. vent height: 1000 mm
Max. vent height: 3500 mm
Min. vent width: 1000 mm
Max. vent width: 3500 mm
Vent frame face width: 0 mm

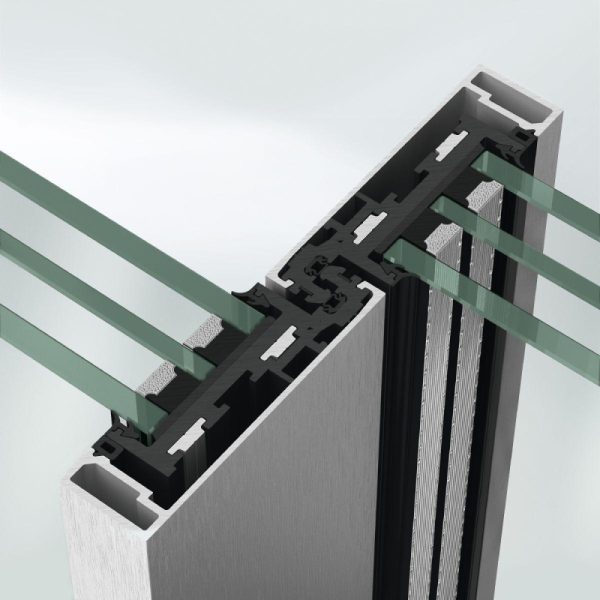

Min. face width of interlocking section: 35 mm
Min. system basic depth: 218 mm
Uw value of window (≥): 0.82 W/(m²·K)
Watertightness: E 1050
Burglar resistance: Up to RC 3
Operating type: Manual
-
Description
Schüco AS PD 75.HI – Offers individuality without complexity
The Schüco Panorama Design sliding door AS PD 75.HI brings together the features of multifunctionality and style in various product lines, without sacrificing their individuality. The technical performance features of all the lines are all at the highest level. Additional features such as the integration of sun shading mean that there is a wide choice of configurations for the Panorama Design sliding door. In addition to the standard opening types, the sliding units can be configured as desired and tailored to the requirements of the particular façade design.
Benefits
Fewer tool changes on the CNC machine due to standardised sizes.
No complex recesses required – these are replaced by alternatives (e.g. profile inserts in the vent for attaching the fittings).
Production can be fully transferred to Schüco PreFab in Paderborn if required.
The square-cut joint allows the outer frame to be installed directly on site, meaning the awkward transportation of finished frames is no longer an issue.
The top and sides of the outer frame can be adjusted using adjustment screws, which do not require adjustment brackets.
Quick inspection: The brush seal is installed in a clip-on profile which can be easily removed from the outer frame.
Rollers can be installed without tools, using clips instead of toothed lock washers.
The pull grip and interlock can be easily disassembled thanks to screw-fixing with metric screws.
