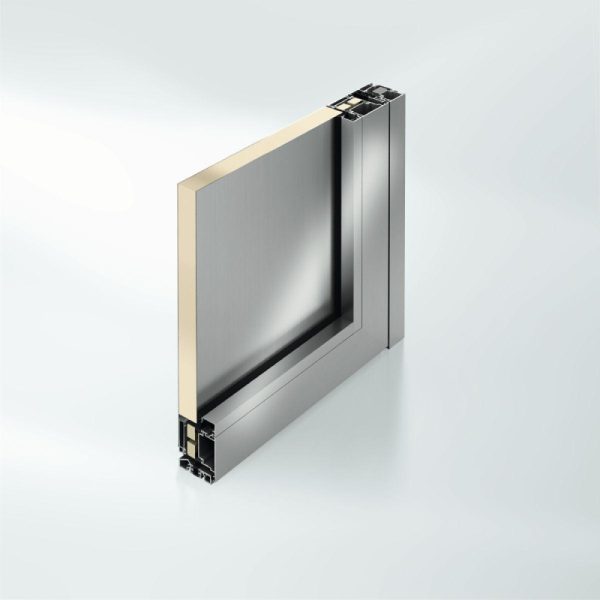

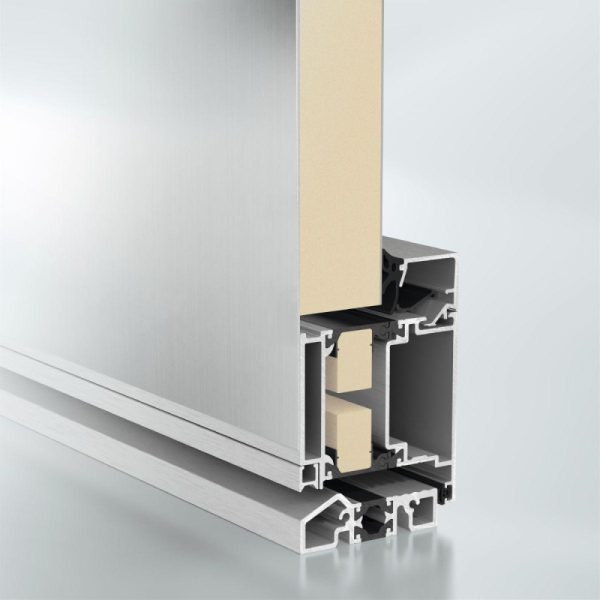

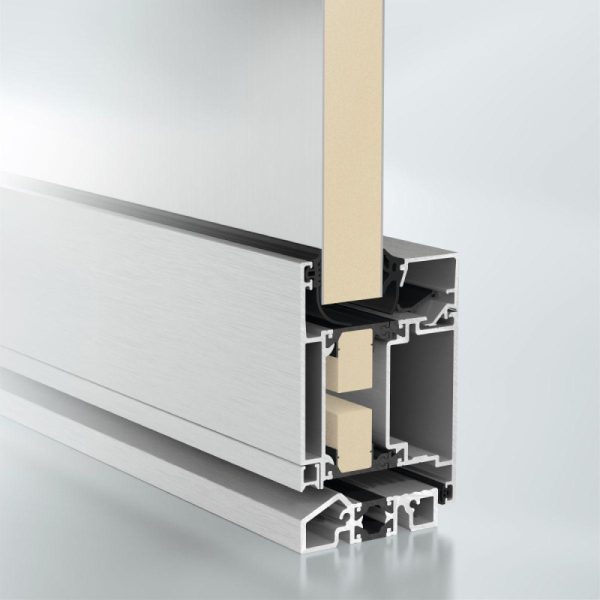

ADS 70.HI
DOORS
Characteristics
Uf value of frame (≥): 1,7 W/(m²·K)
Max. height: 2500 mm
Max. width: 1250 mm
Max. glass/panel thickness: 52 mm
Max. vent weight: 150 kg
Area of application: Residential projects, Commercial projects
Performance
Air permeability: CLASS 2
Watertightness: Class 5A
Wind load resistance: Class C3
Burglar resistance: Up to RC 3
Impact resistance: Class 1
-
Description
Thermally insulated multi-purpose door with timeless design
The Schüco ADS 70.HI (High Insulated) door system combines outstanding thermal Insulation with the benefit of attractive design and fittings options. Thanks to a variety of design options, the aluminium door system can be implemented as a multifunctional door – optionally integrated in building security and automation systems.
It is distinguished by its timeless design, including an SL (Soft Line) version with rounded leaf contours, and can be effortlessly combined with Schüco façade and window systems.
Integrated in a sustainable building concept, the thermally insulated door system is an important step in improving the energy balance of the property while offering maximum design freedom.
Benefits
Attractive design options: designs with bevelled (Residential Line) and rounded (Soft Line) leaf contours, as well as a Heavy Duty (HD) door design.
Large selection of hinges: surface-mounted hinges, concealed hinges and barrel hinges.
Connection to building automation systems: access control, radio control and integration in the building management system.
Almost flush-fitted rosette: harmonious door appearance.
Easy-access solutions are possible.
Reliable and secure operation: 500,000 test cycles in accordance with DIN EN 12400.
