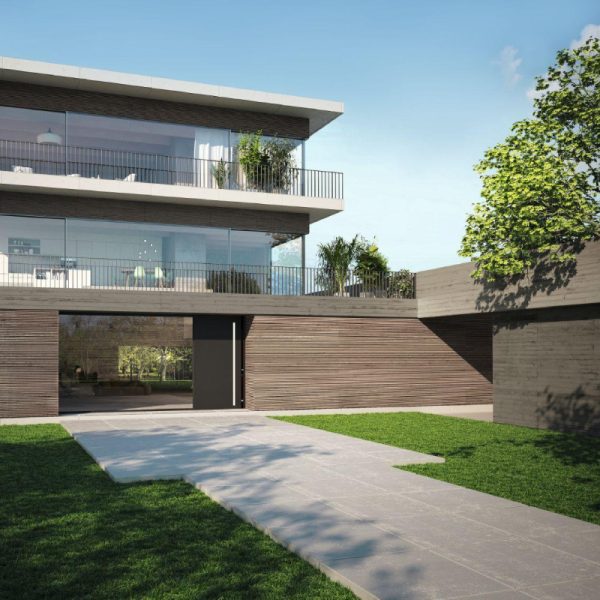

AD UP DESIGN EDITION
DOORS
Characteristics
UF value of frame (≥): 1,4 W/(m²·K)
Max. height: 2500 mm
Max. width: 1250 mm
Max. glass/panel thickness: 90 mm
Max. vent weight: 160 kg
Area of application: Residential projects, Commercial projects
Performance
Air permeability: Class 4
Watertightness: Class 5A
Wind load resistance: Class C2/B2
Burglar resistance: Up to RC 2
-
Description
Design door for the most demanding requirements in terms of aesthetics and function
Function meets design – the Schüco AD UP Design Edition door system combines a high-quality appearance with convenience for users, for aluminium door solutions which meet any challenge.
The elegant flush pull grip with homogenous LED illumination gives an impression of grace, while the combination of leaf-enclosing door infills with a high-quality, flush-fitted appearance and the seamless integration of the design profile in the leaf fulfil the highest architectural requirements.
New to the system portfolio: design options integrated in the door infill for all system basic depths offer developers, architects and client additional choices.
All door versions can be designed inward or outward-opening as desired.
Benefits
High-quality design feature: fully profile-integrated aluminium door pull with indirect illumination.
Integration of modern Schüco door communication and access control systems: e.g. through flush-fitted integration of the Schüco Door Control System (DCS).
Continuous double centre gasket: excellent insulation and sealing properties.
Illuminated flush pull grip: LED strip with various colour temperatures in cold white and warm white.
