AD UP 90
DOORS
Characteristics
UF value of frame (≥): 1,3 W/(m²·K)
Max. height: 2500 mm
Max. width: 1250 mm
Max. glass/panel thickness: 68 mm
Max. vent weight: 160 kg
Area of application: Residential projects, Commercial projects
Performance
Air permeability: CLASS 4
Watertightness: Class 5A
Wind load resistance: Class C2/B2
Burglar resistance: Up to RC 2
Impact resistance:Class 1
-
Description
Innovative system enhancement of the Schüco Universal Platform door system – for efficient, fast fabrication of front doors and entrance doors

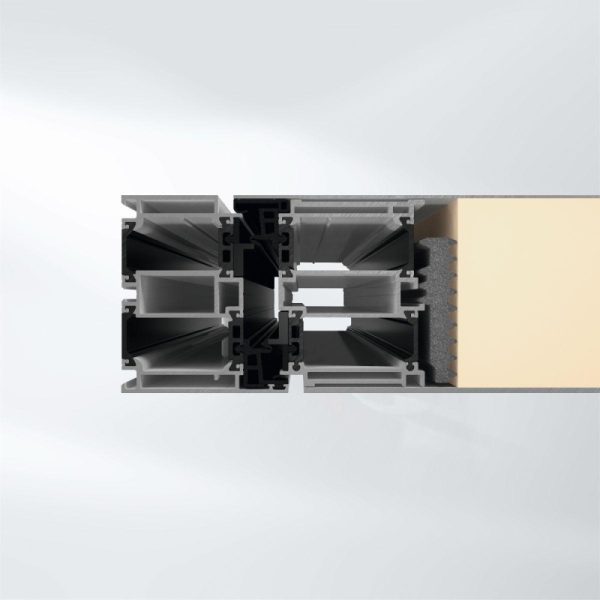

System enhancement of the Schüco Universal Platform, the new Schüco AD UP 90 BL Residential door series offer innovative, mechanical, adhesive-free infill fixing for mounted infills on one side or both sides without additional fixing profiles.

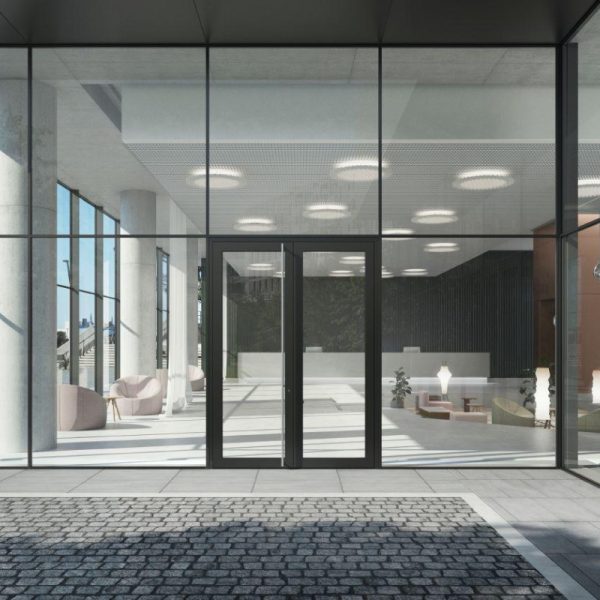

The system development enables fast and efficient fabrication of front doors and entrance doors for luxury homes.

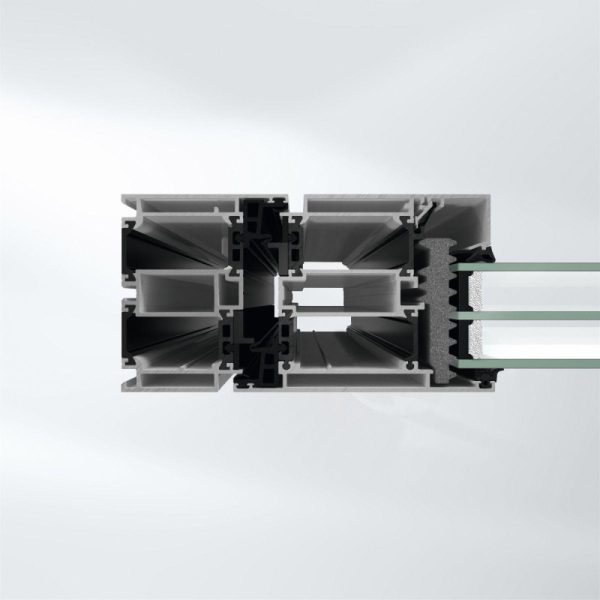

The Schüco AD UP 90 BL Residential door has a modular gasket system which can be tailored to meet individual requirements and scaled within one basic depth to improve the weathertightness and Uf values.
Benefits

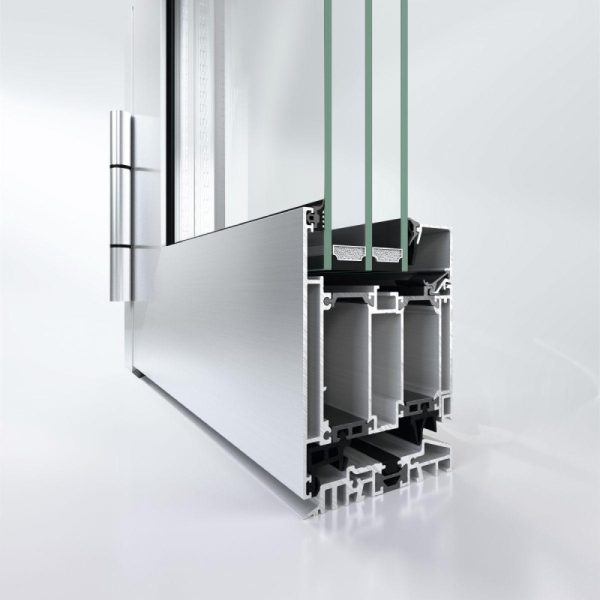

Triple-shell profile composition ensures maximum stability and functional reliability.
Excellent thermal insulation.
Mechanical durability tests up to 1 million cycles ensure a long service life and a high load-bearing capacity.
Range of vent types, concealed hinges in combination with door communication and access control for high degree of planning freedom.
Proven system security and comfort.
Continuous double centre gasket: excellent insulation and sealing properties.
